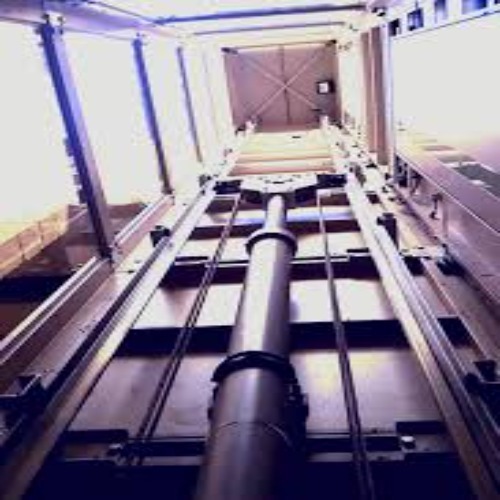

Hydraulic Passenger Lift

Hydraulic Passenger Lift Specification

Car Dimension
As per Capacity & Custom Requirement

Door Opening Size
700mm - 1100mm

Type
Passenger Lift

Usage
Residential, Commercial, Hospital

Voltage
220-380 V

Overhead Height
3700 mm (minimum)

Noise Level
< 60 dB

Pit Depth
500 mm - 1500 mm

Load Capacity
320 kg - 1600 kg

Hoist Way Size
Varies by Lift Capacity (Contact manufacturer)

Machine Room Size
Machine Roomless or 1200mm x 1600mm (minimum)

Inclination
0 (Vertical)

Material
Stainless Steel Cabin, MS Powder coated Shaft

Drive Type
Hydraulic

Power Supply
3 Phase, 50/60 Hz

Speed
0.3 - 1 m/s

Max. Lifting Height
Up to 30 meters

Max. Lifting Weight
1600 kg

Mechanism Type
Hydraulic

Working Temperature
-10C to 60C

Control Device
Microprocessor Based Controller

Safety Device
Automatic Rescue Device, Buffer Springs, Overload Sensor, Emergency Stop, Alarm Bell, Door Interlock

Capacity
4-20 Persons

Flooring Option
PVC / Marble / Optional Custom

Door Type
Automatic Center Opening / Manual Swing

Emergency Communication
Intercom / Telephone (Optional)

Installation Time
15-30 Days Depending on Site

Control Panel Position
Inside and Outside Cabin

Lighting
LED Illuminated Cabin

Operation
Simplex/ Duplex/ Group Collective Control

Handrail
Stainless Steel, Optional

Power Consumption
Low, Energy Efficient System

Finish Options
Hairline, Mirror, Etched Patterns

Fire Resistance
Fire Retardant Electrical Accessories

Landing Indication
Digital Display

Hydraulic Passenger Lift Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Hydraulic Passenger Lift

A hydraulic lift is a machine that uses liquid pressure to lift or move heavy objects. It works on the principle of Pascal's Law.

How it works

A hydraulic lift contains:

A small piston
A large piston
Hydraulic fluid (usually oil)

When force is applied to the small piston, pressure is created in the fluid. This pressure is transmitted equally to the large piston, producing a greater lifting force.

Versatile Door and Control Options

Choose between automatic center opening or manual swing doors to meet your architecture and user preference. Control panels are conveniently installed both inside and outside the cabin, ensuring easy accessibility for all passengers. Advanced microprocessor controllers support simplex, duplex, or group collective operation modes, optimizing lift efficiency and user experience.

Customizable and Safe Interior

The cabin features stainless steel handrails (optional), LED illumination, and flooring options ranging from PVC to marble or custom designs. Digital landing indicators enhance usability. Built-in safety mechanisms such as automatic rescue, buffer springs, and overload sensors provide peace of mind, while the cabin materials and accessories are fire retardant for added protection.

Efficient Installation and Performance

Our hydraulic lifts adapt to various shaft sizes and capacities, with machine roomless or compact machine room installations. With quick installation times (15-30 days), low power consumption, and noise levels below 60 dB, our lifts deliver excellent performance across diverse environments-operating smoothly from -10C to 60C and supporting up to 30 meters of vertical travel.

FAQ's of Hydraulic Passenger Lift:

Q: How does the hydraulic mechanism enhance lift performance and safety?

A: The hydraulic mechanism ensures smooth, jerky-free rides with low operational noise. It delivers reliable lifting power for loads ranging from 320 kg to 1600 kg, and incorporates essential safety features such as buffer springs, overload sensors, and emergency stop functions, providing safe transit even during power outages with the automatic rescue device.

Q: What customization options are available for the cabin interiors and doors?

A: Customers can select between automatic center opening or manual swing doors and choose from a variety of finishes such as hairline, mirror, or etched patterns. Cabin interiors are customizable with different flooring options-PVC, marble, or bespoke designs-and optional stainless steel handrails, ensuring the lift complements any building style.

Q: When can I expect installation to be completed after placing an order?

A: Installation time ranges from 15 to 30 days depending on the specific site requirements, including hoistway size and capacity. Our team coordinates with you to ensure a smooth process from site assessment to final commissioning.

Q: Where can this passenger lift be installed?

A: Our hydraulic lifts are versatile and suitable for residential apartments, commercial complexes, hospitals, and institutional buildings. The flexible design allows for installation in new or existing structures, with machine roomless or minimal machine room requirements meeting varied site constraints.

Q: What is the process for customizing and ordering a hydraulic passenger lift?

A: To begin, contact our team to discuss your specific needs regarding capacity, finish, door type, and site conditions. We provide a tailored quote, conduct a site assessment, and finalize design specifications to match your requirements before initiating production and installation.

Q: What are the benefits of digital landing indication and microprocessor control?

A: Digital landing indicators offer clear, easy-to-read information on each floor, enhancing passenger convenience. The microprocessor-based controller enables simplex, duplex, or group operation modes which improve efficiency, reduce waiting times, and adapt to building traffic demand.
